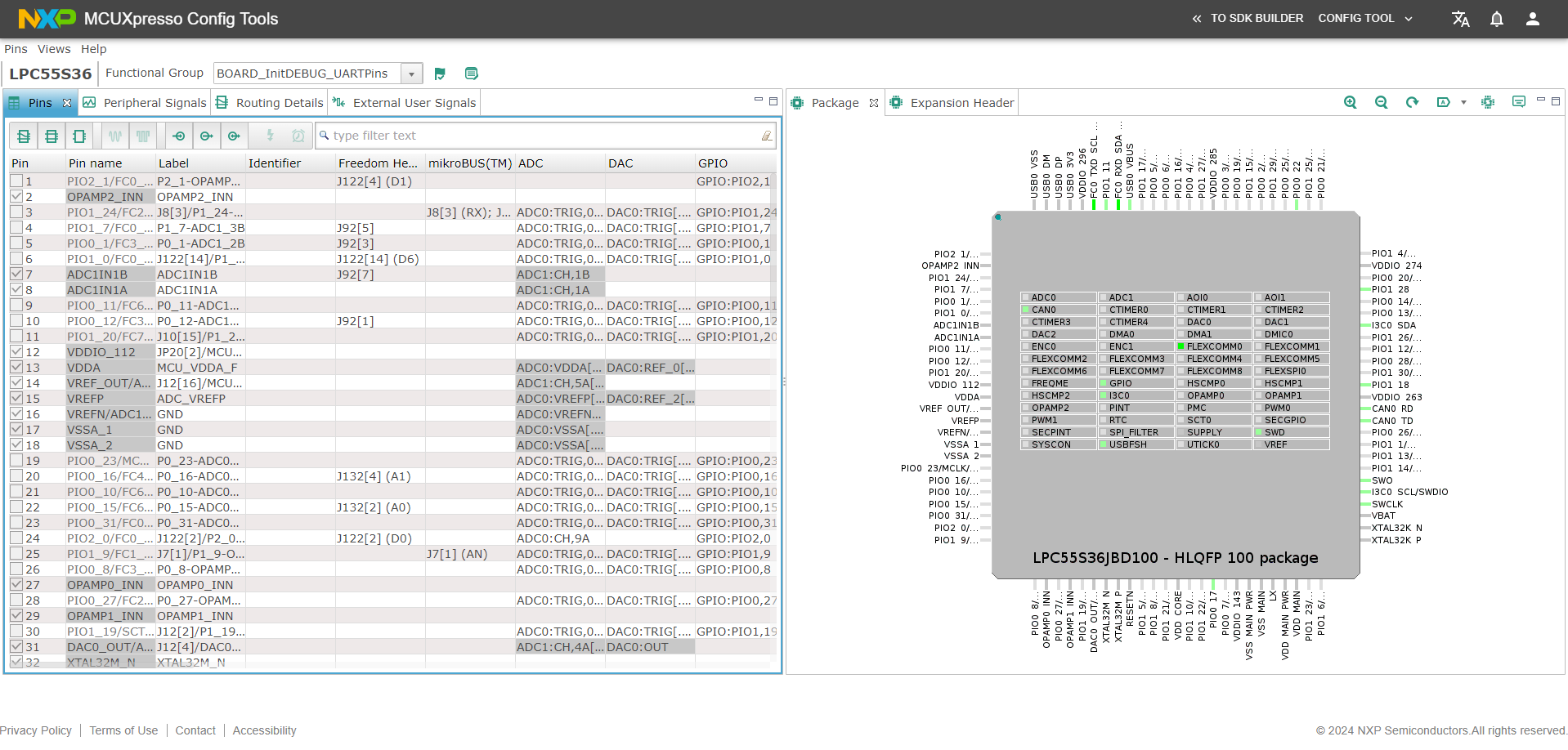

Pins Tool#
In the Pins tool, you can display and configure the pins of the processor. Basic configuration can be done in Pins, Peripheral Signals, or Package views.
More advanced settings (pin electrical features) can be adjusted in the Routed Pins view.
