How to add or remove boot header for XIP targets

How to add or remove boot header for XIP targets#

The MCUXpresso SDK for i.MX RT1060-EVKC provides flexspi_nor_debug and flexspi_nor_release targets for each example and/or demo which supports XIP (eXecute-In-Place). These two targets add XIP_BOOT_HEADER to the image by default. Because of this, ROM can boot and run this image directly on external flash.

Macros for the boot leader

Where to change the macros for each toolchain in MCUXpresso SDK?

Take hello_world as an example:

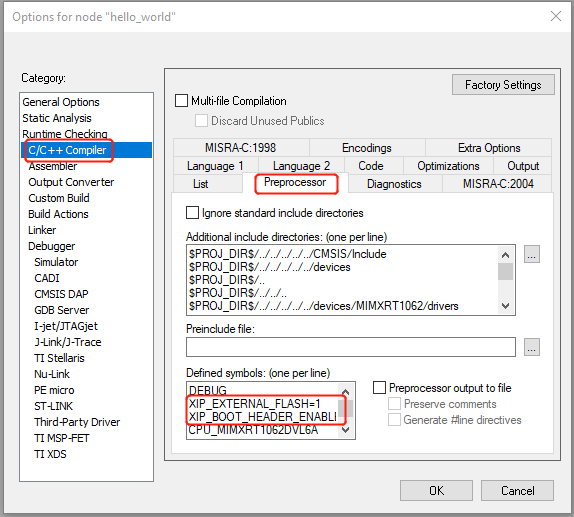

  • IAR

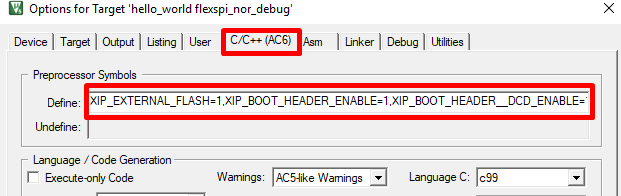

  • MDK

  • ARMGCC

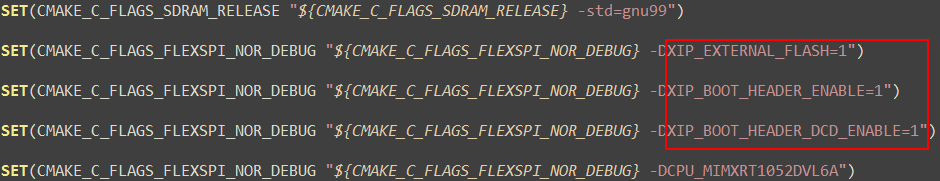

    Change the configuration in CMakeLists.txt.

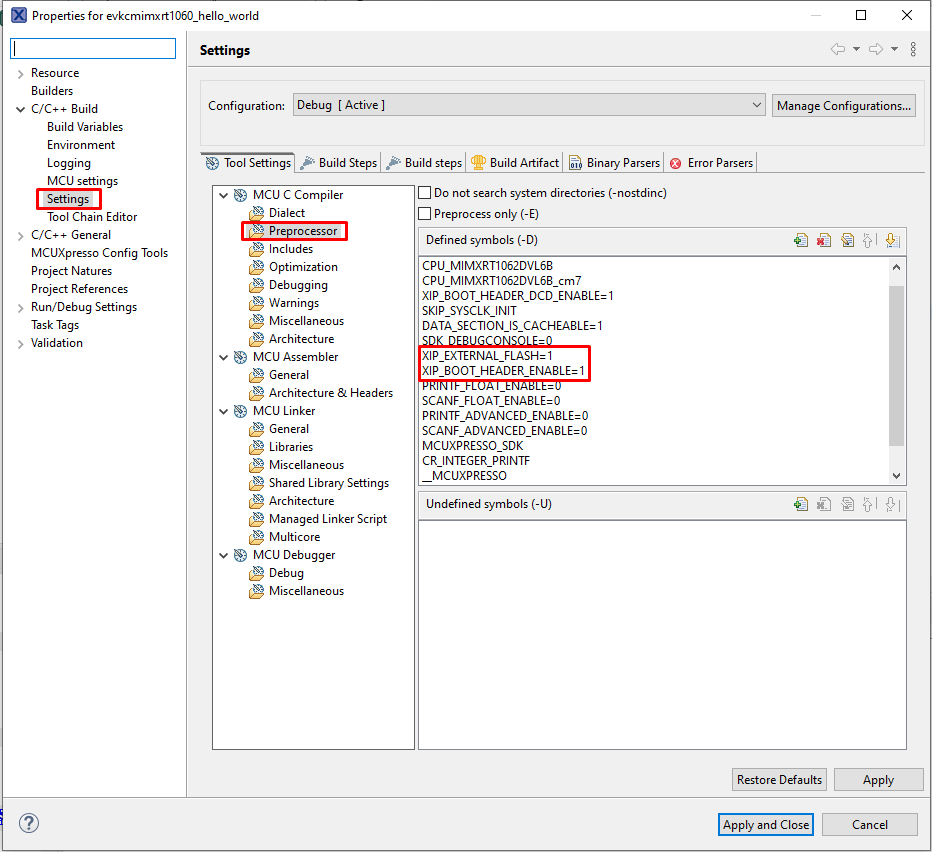

  • MCUX
