IWxxx Thread & Zigbee Dualpan solution in NXP i.MX Matter

Introduction

The IWxxx NXP chipsets (IW612, IW610) features highly integrated 2.4/5 GHz dual-band 1x1 Wi-Fi 6, Bluetooth/Bluetooth Low Energy 5.4 and 802.15.4 tri-radio single-chip solution
NXP i.MX meta-nxp-connectivity Yocto layer provides Yocto recipes to enable Matter, OpenThread and Zigbee for i.MX MPU
Prerequisite is to follow instructions to first build the complete i.MX Matter image

Following sections specifically describe how to experiment Zigbee & Thread Dualpan features with 3-radio IWxxx NXP chipsets e.g. IW612 or IW610
Dedicated IWxxx Zigbee stack and examples are first introduced
Finally, last section details a complete IWxxx Dualpan example on i.MX: Matter to Zigbee Bridge Application

IWxxx Dualpan Architecture

i.MX Dualpan IWxxx

Thread and Zigbee i.MX Host applications run on top of a SPI Multiplexer daemon called zb_mux
The zb_mux daemon uses i.MX SPI kernel device to exchange Spinel messages with IWxxx Firmware through SPI Bus
The zb_mux daemon also creates two Virtual UART Devices that both Zigbee and Thread applications use to communicate seamlessly with IWxxx Firmware

IWxxx Zigbee Stack and Examples

meta-nxp-connectivity comes with a certified Zigbee stack for IWxxx chipsets
It is split in two Yocto recipes:

  • zigbee-rcp-sdk: zb_mux daemon, IWxxx Zigbee Stack header files and static libraries and Linux Systemd services&scripts, IWxxx Zigbee Stack Development Guide documentation

  • zigbee-rcp-apps: Zigbee Example applications C source code and CMAKE build files

NOTE: Additional important resources can be accessed from NXP website. It requires login and granted access to these resources: Latest IW612 Zigbee DualPan package is available SD-WLAN-UART-BT-SPI-OT-Zigbee-DualPAN-IW612-LNX_6_12_20-IMX8-18.99.3.p25.7-18.99.3.p25.7-MM6X18537.p9-GPL
It includes: - README_Zboss_package_for_Zigbee.txt - Example applications source code

Zigbee SDK

Once the i.MX Matter image is built, all zigbee-rcp-sdk components can be found in the Yocto build folder
For example, for a MACHINE=imx93evk-iwxxx-matter build, components are unpacked in ${MY_YOCTO}/bld-xwayland-imx93evk-iwxxx-matter/tmp/work/armv8a-poky-linux/zigbee-rcp-sdk/1.0/sources-unpack/ zigbee-rcp-sdk goal is to:

  • install zb_mux daemon and Systemd Zigbee services on the i.MX Root Filesystem

  • install Zigbee header files and static libraries in Yocto build system to build Zigbee example applications

  • install IWxxx Zigbee Stack Development Guide documentation

Zigbee Examples

Similarly to zigbee-rcp-sdk components, zigbee-rcp-apps components can be found in the Yocto build folder
For example, for a MACHINE=imx93evk-iwxxx-matter build, components are unpacked in ${MY_YOCTO}/bld-xwayland-imx93evk-iwxxx-matter/tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/sources-unpack/ The folder tree content is:

├── CMakeLists.txt
├── examples
│   ├── hello
│       ├── hello.c
│       ├── CMakeLists.txt
── zigbee_rcp_app.cmake

Zigbee Application Details

  • CMakeList.txt: contains all the applications to be built by pointing to the individual “Application CMakeLists.txt” of an application folder

  • zigbee_rcp_app.cmake: builds either a ZC_EXE, a ZR_EXE or a ZED_EXE according settings from each individual “Application CMakeLists.txt”

Taking examples/hello, its CMakeLists.txt is:

set(app_proj "examples/hello")
project(${app_proj})
message("Project: ${app_proj}")

set(zc_exe "hello_zc")
list(APPEND zc_src ${app_proj}/hello.c)
option(ZC_EXE "Build ZC" ON)

set(zr_exe "hello_zr")
list(APPEND zr_src  ${app_proj}/hello.c)
option(ZR_EXE "Build ZR" ON)

set(zed_exe "hello_zed")
list(APPEND zed_src ${app_proj}/hello.c)
option(ZED_EXE "Build ZED" ON)

include(${CMAKE_CURRENT_SOURCE_DIR}/zigbee_rcp_app.cmake)

zigbee_rcp_app.cmake build results are:

Executable
in /usr/bin

Zigbee
Device Type

Source files

Zigbee
Static libraries

hello_zc

Coordinator

hello.c

libzboss.a

hello_zr

Router

hello.c

libzboss.a

hello_zed

End Device

hello.c

libzboss.ed.a

Import an existing Zigbee application into meta-nxp-connectivity

From the latest IW612 Zigbee DualPan package mentioned above, NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb.zip contains the “examples” folder
All these examples applications source codes can be easily integrated in the meta-nxp-connectivity to get them in the final i.MX Root Filesystem

Following describes how to import and build examples/cli_nxp
examples/cli_nxp/Makefile helps to build five executables: cli_nxp_zczr & cli_nxp_zed and zb_daemon_zczr & zb_daemon_zed & zb-ctl
As an example, zb_daemon_zczr requires the following object files:
OBJS_ZB_DAEMON_ZCZR = cli_main.o cli_menu_socket.o cli_config.o cli_network.o cli_endpoint.o cli_cluster.o cli_zdo.o cli_installcode.o cli_nvram.o cli_tools.o

All build directive from Makefile needs to be translated into Cmake build directives located in CMakeLists.txt

cd ${MY_YOCTO}/sources/meta-nxp-connectivity/meta-nxp-zigbee-rcp/recipes-zigbee-rcp-apps/files/
mkdir examples/cli_nxp
cp <NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb>/examples/cli_nxp/ examples/cli_nxp
mkdir examples/ota_upgrade_nxp
cp <NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb>/examples/ota_upgrade_nxp/ examples/ota_upgrade_nxp

cat << EOF > examples/cli_nxp/CMakeLists.txt
cmake_minimum_required(VERSION VERSION 3.10.2)

set(zc_src "")
set(zr_src "")
set(zed_src "")
set(zc_exe "")
set(zr_exe "")
set(zed_exe "")

set(app_proj "examples/cli_nxp")
project(\${app_proj})
message("Project: \${app_proj}")

set(zc_exe "cli_nxp_zczr")
list(APPEND zc_src \${app_proj}/cli_main.c \${app_proj}/cli_menu_console.c \${app_proj}/cli_config.c \${app_proj}/cli_network.c \${app_proj}/cli_endpoint.c \${app_proj}/cli_cluster.c \${app_proj}/cli_zdo.c \${app_proj}/cli_installcode.c \${app_proj}/cli_nvram.c \${app_proj}/cli_tools.c)
option(ZC_EXE "Build ZC" ON)

set(zed_exe "cli_nxp_zed")
list(APPEND zed_src \${app_proj}/cli_main.c \${app_proj}/cli_menu_console.c \${app_proj}/cli_config.c \${app_proj}/cli_network.c \${app_proj}/cli_endpoint.c \${app_proj}/cli_cluster.c \${app_proj}/cli_zdo.c \${app_proj}/cli_installcode.c \${app_proj}/cli_nvram.c \${app_proj}/cli_tools.c)
option(ZED_EXE "Build ZED" ON)

include(\${CMAKE_CURRENT_SOURCE_DIR}/zigbee_rcp_app.cmake)

set(zc_src "")
set(zr_src "")
set(zed_src "")
set(zc_exe "")
set(zr_exe "")
set(zed_exe "")

set(zc_exe "zb_daemon_zczr")
list(APPEND zc_src \${app_proj}/cli_main.c \${app_proj}/cli_menu_socket.c \${app_proj}/cli_config.c \${app_proj}/cli_network.c \${app_proj}/cli_endpoint.c \${app_proj}/cli_cluster.c \${app_proj}/cli_zdo.c \${app_proj}/cli_installcode.c \${app_proj}/cli_nvram.c \${app_proj}/cli_tools.c)
option(ZC_EXE "Build ZC" ON)

set(zed_exe "zb_daemon_zed")
list(APPEND zed_src \${app_proj}/cli_main.c \${app_proj}/cli_menu_socket.c \${app_proj}/cli_config.c \${app_proj}/cli_network.c \${app_proj}/cli_endpoint.c \${app_proj}/cli_cluster.c \${app_proj}/cli_zdo.c \${app_proj}/cli_installcode.c \${app_proj}/cli_nvram.c \${app_proj}/cli_tools.c)
option(ZED_EXE "Build ZED" ON)

set(zr_exe "zb-ctl")
list(APPEND zr_src \${app_proj}/zb-ctl.c)
option(ZR_EXE "Build ZR" ON)

include(\${CMAKE_CURRENT_SOURCE_DIR}/zigbee_rcp_app.cmake)
EOF

echo "include(\${CMAKE_CURRENT_SOURCE_DIR}/examples/cli_nxp/CMakeLists.txt)" >> CMakeLists.txt

echo "SRC_URI += \"file://examples/cli_nxp/\"" >> ../zigbee-rcp-apps.bb
echo "SRC_URI += \"file://examples/ota_upgrade_nxp/\"" >> ../zigbee-rcp-apps.bb

cd ${MY_YOCTO}/bld-xwayland-imx93evk-iwxxx-matter
bitbake -fc cleanall zigbee-rcp-apps
bitbake zigbee-rcp-apps

ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/cli_nxp_zczr
ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/cli_nxp_zed
ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/zb_daemon_zczr
ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/zb_daemon_zed
ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/zb-ctl

Create a new Zigbee application

From the latest IW612 Zigbee DualPan package mentioned above, NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb.zip contains the “examples” folder
the examples/dualpan_nxp currently builds 3 executables: dualpan_zc, dualpan_zr and dualpan_zed

Based on examples/dualpan_nxp, the new application is example/my_zigbee_gateway with only one Zigbee Coordinator executable: my_zigbee_gw_zc

cd ${MY_YOCTO}/sources/meta-nxp-connectivity/meta-nxp-zigbee-rcp/recipes-zigbee-rcp-apps/files/
mkdir examples/my_zigbee_gateway
cp <NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb>/examples/dualpan_nxp/dualpan_zc.c examples/my_zigbee_gateway/my_gw_zc.c
cp <NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb>/examples/dualpan_nxp/dualpan_channel.h examples/my_zigbee_gateway/
cp <NXP-ZBOSS-HOST-RELEASE-XXX.YYY-aaaaaa-bbbbbb>/examples/dualpan_nxp/dualpan.h examples/my_zigbee_gateway/

cat << EOF > examples/my_zigbee_gateway/CMakeLists.txt
cmake_minimum_required(VERSION VERSION 3.10.2)

set(zc_src "")
set(zr_src "")
set(zed_src "")
set(zc_exe "")
set(zr_exe "")
set(zed_exe "")

set(app_proj "examples/my_zigbee_gateway")
project(\${app_proj})
message("Project: \${app_proj}")

set(zc_exe "my_zigbee_gw_zc")
list(APPEND zc_src \${app_proj}/my_gw_zc.c \${app_proj}/dualpan_channel.c)
option(ZC_EXE "Build ZC" ON)

include(\${CMAKE_CURRENT_SOURCE_DIR}/zigbee_rcp_app.cmake)
EOF

echo "include(\${CMAKE_CURRENT_SOURCE_DIR}/examples/my_zigbee_gateway/CMakeLists.txt)" >> CMakeLists.txt

echo "SRC_URI += \"file://examples/my_zigbee_gateway/\"" >> ../zigbee-rcp-apps.bb

cd ${MY_YOCTO}/bld-xwayland-imx93evk-iwxxx-matter
bitbake -fc cleanall zigbee-rcp-apps
bitbake zigbee-rcp-apps

ls -l tmp/work/armv8a-poky-linux/zigbee-rcp-apps/1.0/image/usr/bin/my_zigbee_gw_zc

After a direct transfer in /usr/bin folder of i.MX, new my_zigbee_gw_zc executable is available

Matter to Zigbee Bridge Example

MatterZigbeeRcp-bridge application demonstrates the complete Matter example on i.MX93 & IW612

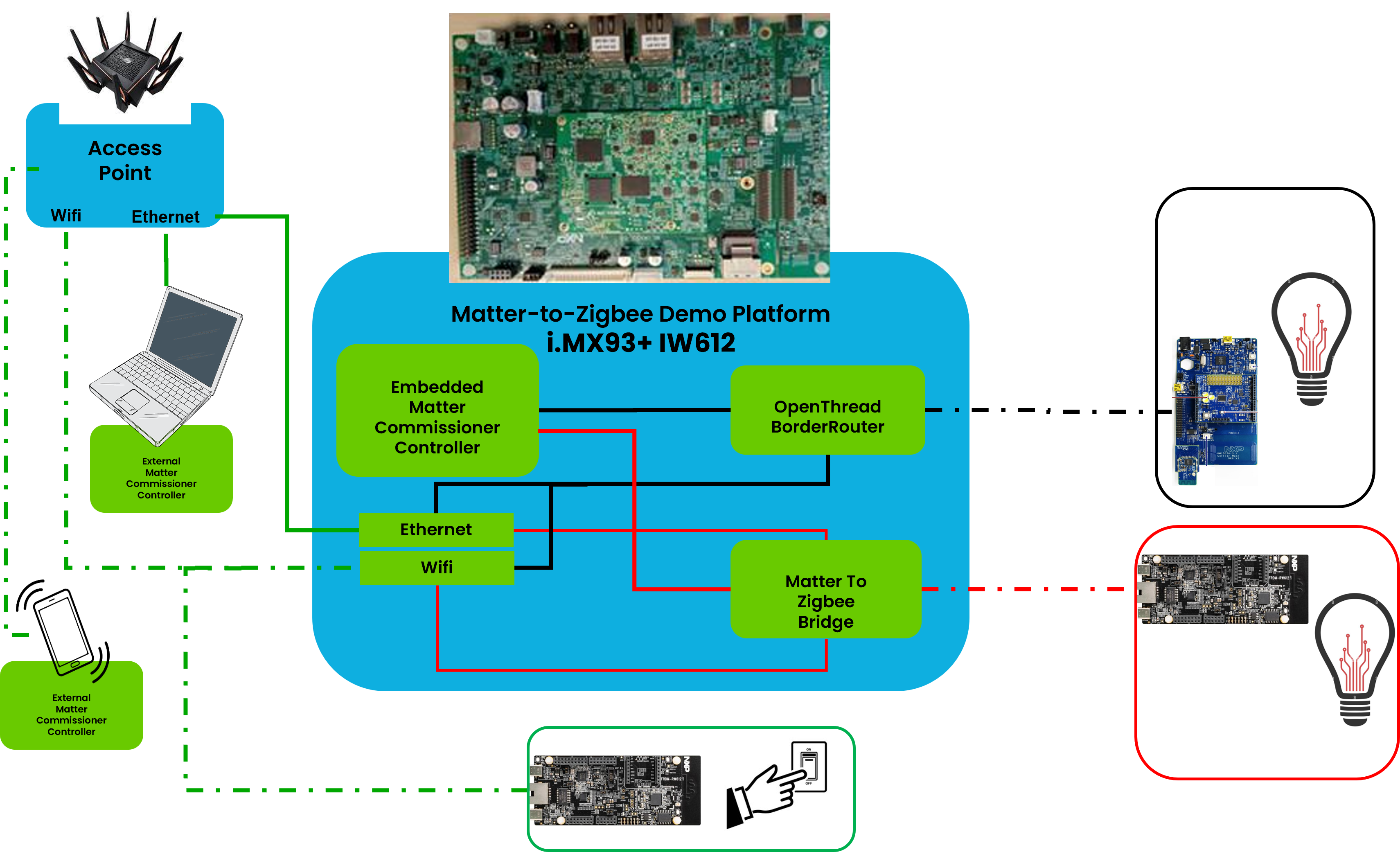

i.MX becomes a Matter to Zigbee Bridge

The i.MX Matter image allows to have a complete Matter Controller on one single i.MX93&IW612 platform:

  • Embedded Posix Openthread BorderRouter manages a Thread network and provides Ethernet or Wi-Fi networks connectivity

  • Matter chip-tool is used to commission and control Matter Wireless End-Devices, either on Wi-Fi or on Thread networks

  • M2ZigbeeRcp-bridge is a Zigbee Coordinator allowing Zigbee End-Devices to join, and transforming them into Matter Bridged End-Devices

NOTE: Both meta-nxp-connectivity native otbr-agent-iwxxx and chip-tool executables are not intended to be modified
M2ZigbeeRcp-bridge is currently an example of a Matter to Zigbee bridge
It is intended to be modified, and its features improved as explained in the dynamic-endpoint-control section
